1. System Overview
In recent years,the advanced night vision technology has gradually been introduced to video monitoring system of oil field,playing a huge role. Sheenrun company developed oil field intelligent monitoring system based on years’ experience and advance laser night vision camera,infrared thermal imaging camera and intelligent video analysis technology. This system can be used on video monitoring of producing well,pipeline and oil storage tank and satisfy the requirement of large monitoring range,strong concealment,around the clock work,damp proof,anti-corrosion,anti-lightning,etc. It has been used on Shengli Oil field,Daqing Oilfield,Karamay Oil Field,Zhongyuan Oilfield,Hebei Oilfield and Dagang Oilfield,obtaining huge social and economic benefit.
2. System Composition

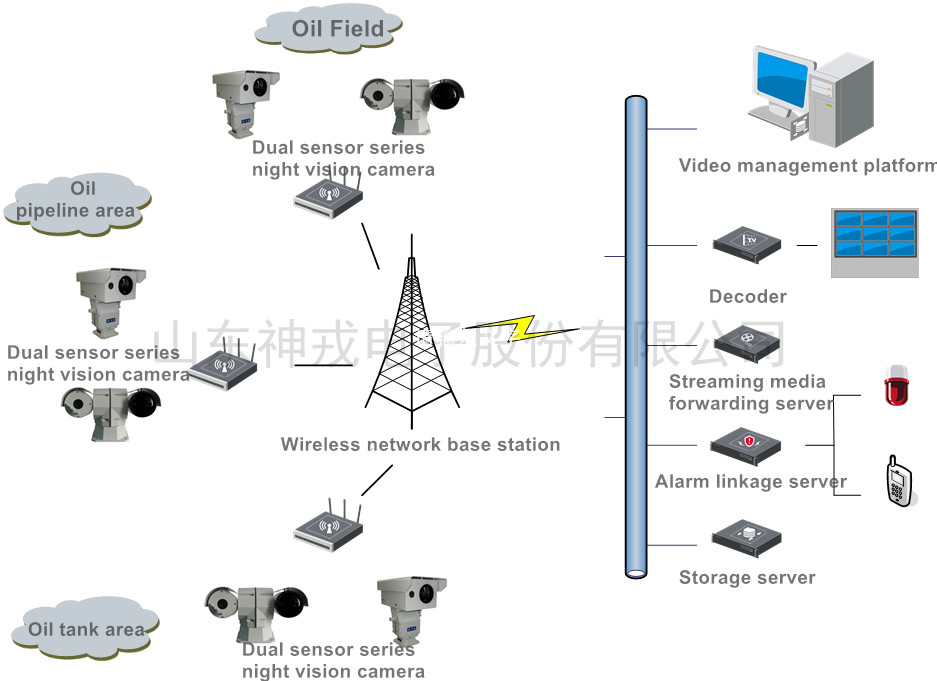

Oil intelligent monitoring system is composed of front-end device,back-end monitoring management system and relevant transmission device. Front-end device adopts bi-spectral night vision which integrates high definition camera and infrared thermal imaging camera,with advantage of imaging clearly,high resolution,good color revivification of high definition camera and long operating distance,large night vision range and strong concealment of thermal imaging camera. It also integrates intelligent tracking server,realizing detecting,locating and tracking of the intruder. According to features of the long visible distance,remote terrain and less jamming equipment in oil field,transmission device adopts wireless bridge,with advantage of low cost,convenient installation and easy maintenance.
3. System Features
■ Around the clock video monitoring,unaffected by rain,snow,fog and smoke.
■ Excellent automatically focusing technology,can realize kinds of focusing and triggering mode
■ Thermal imaging cruising preset function,leave out the trouble of manual zoom.
■ Front-end realize active recognition and intelligent tracking of intruder,quicker and more efficient.

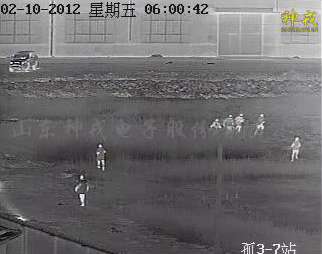

■ Moving object perimeter intruder alarm informing,acousto-optic alarm and message informing

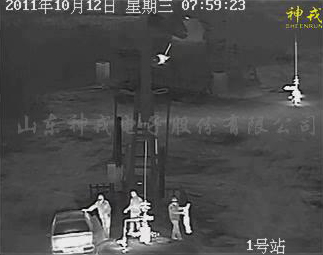

■ Auxiliary system of police arrest,record the criminal suspect escaping path
4. Some Application Cases
■ Oil Fieldin South America
■ Oil Fieldin West Africa
■ Oil Fieldin North America
